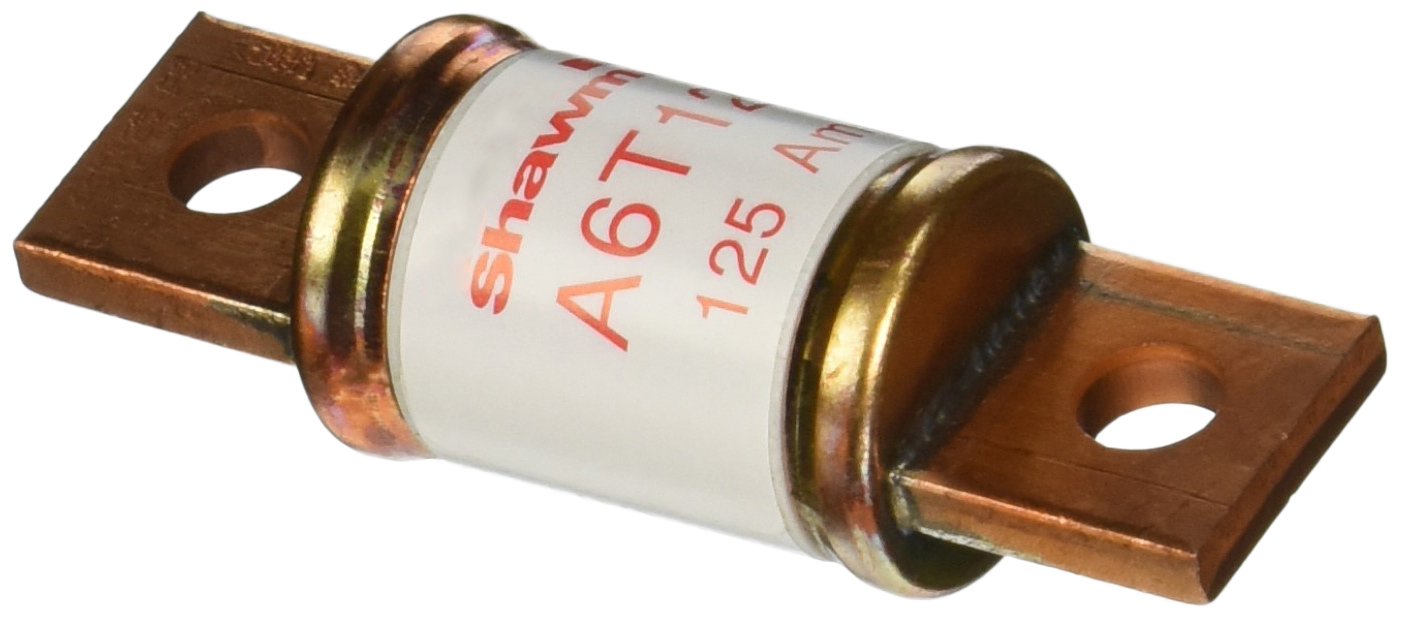

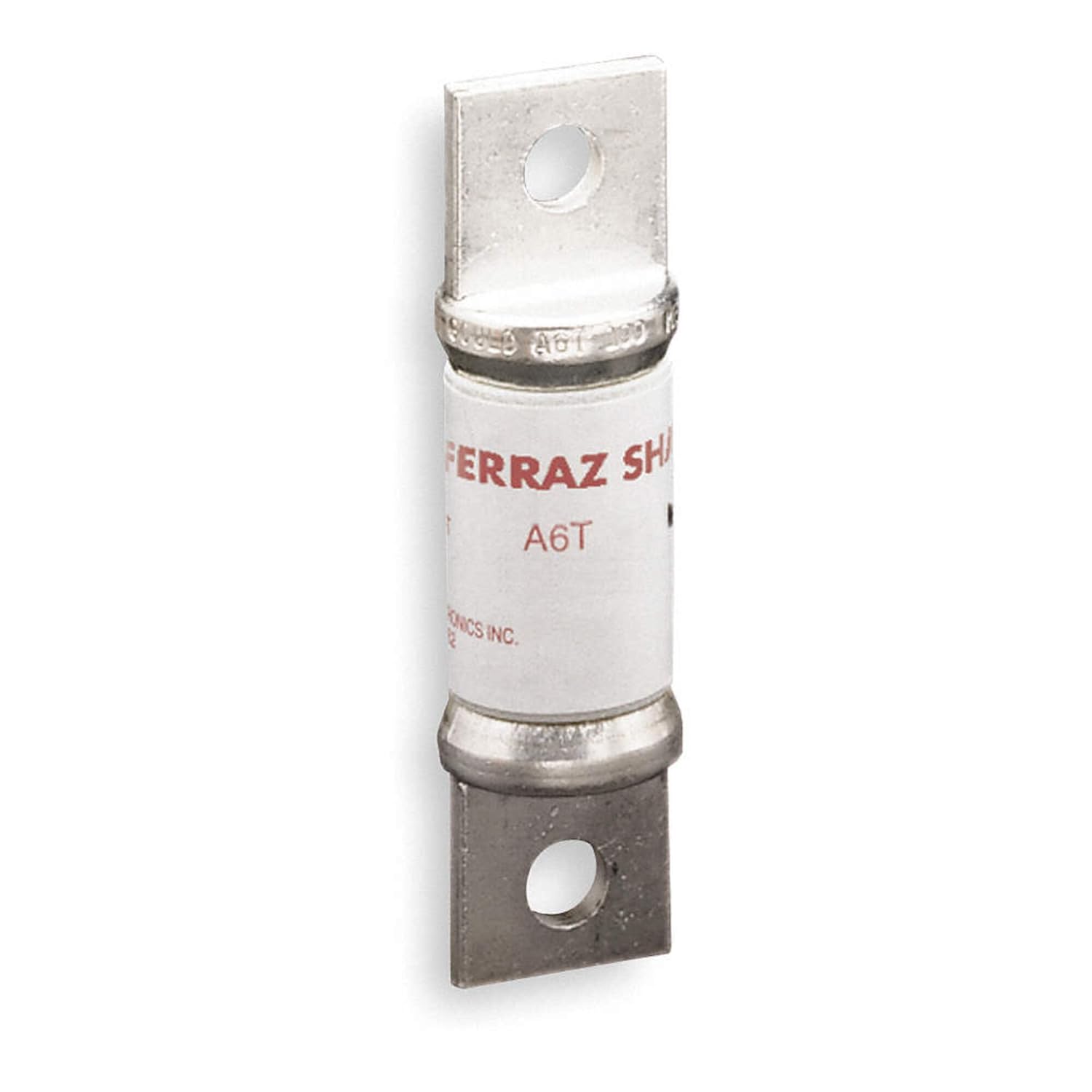

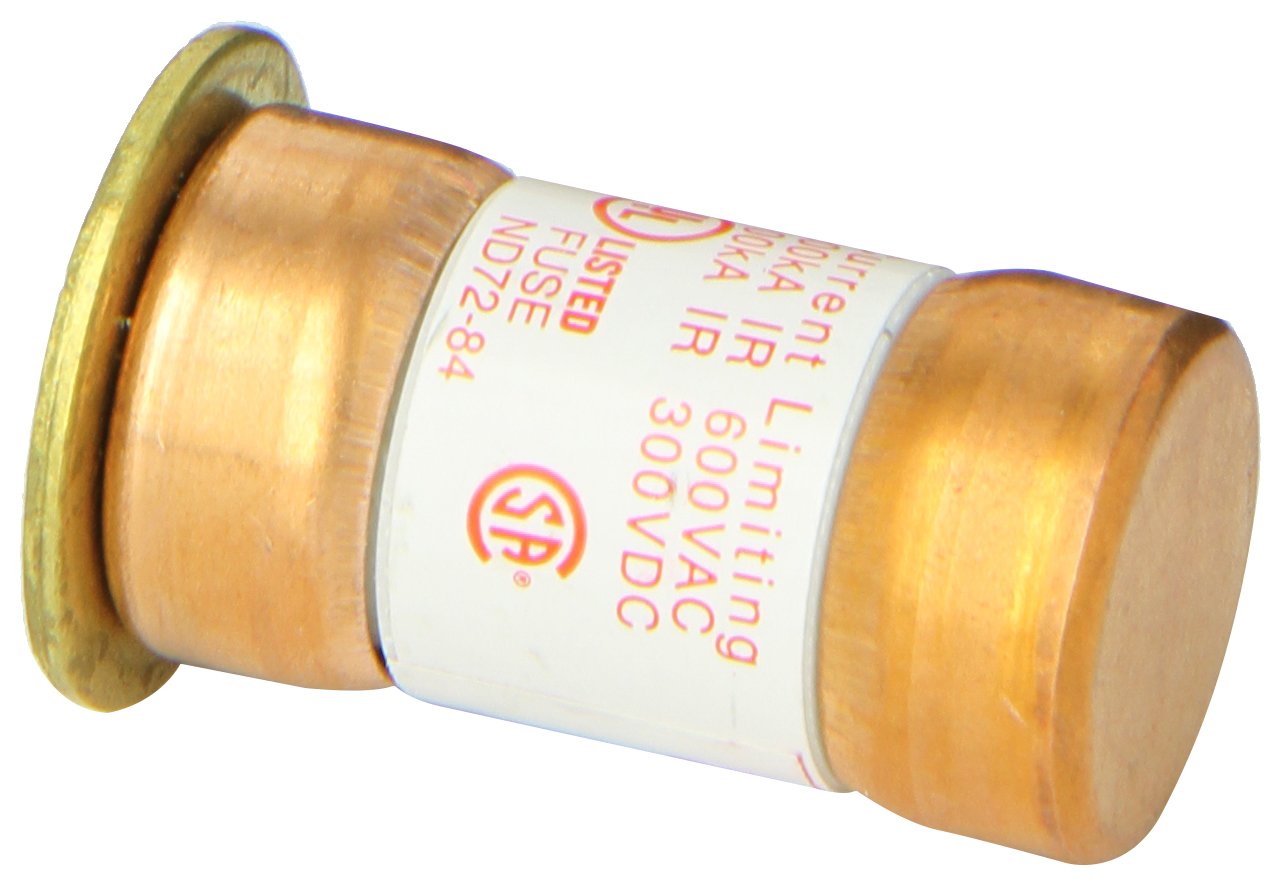

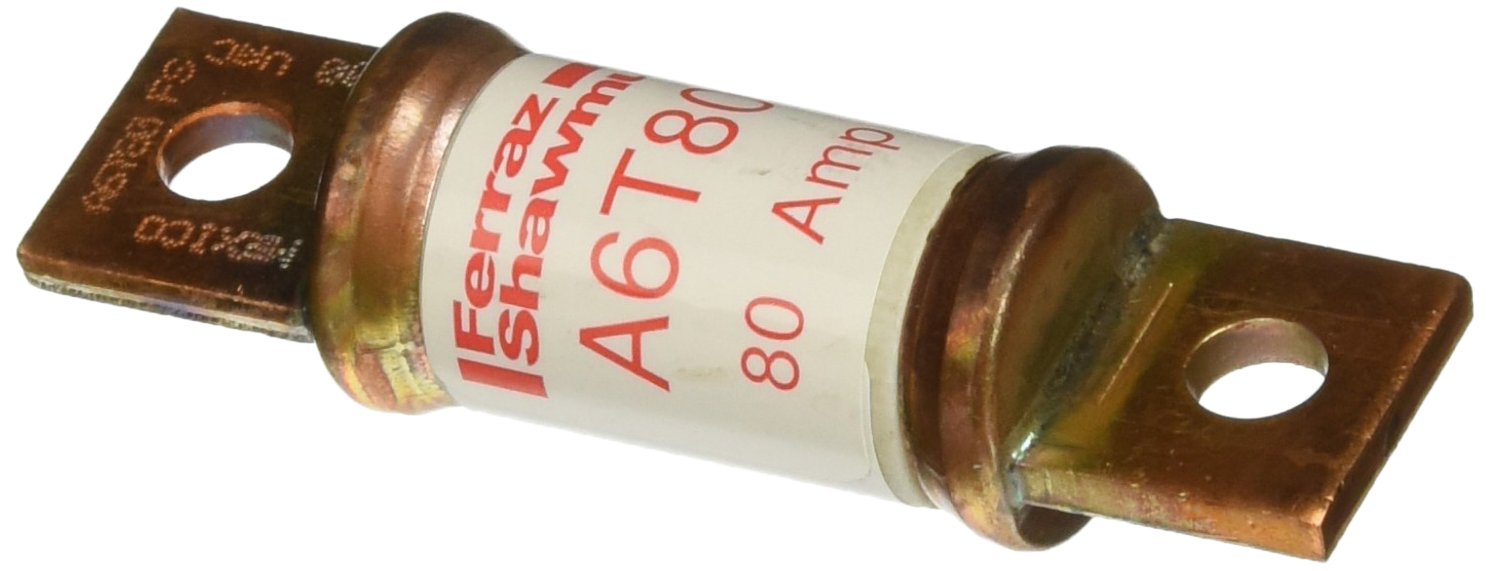

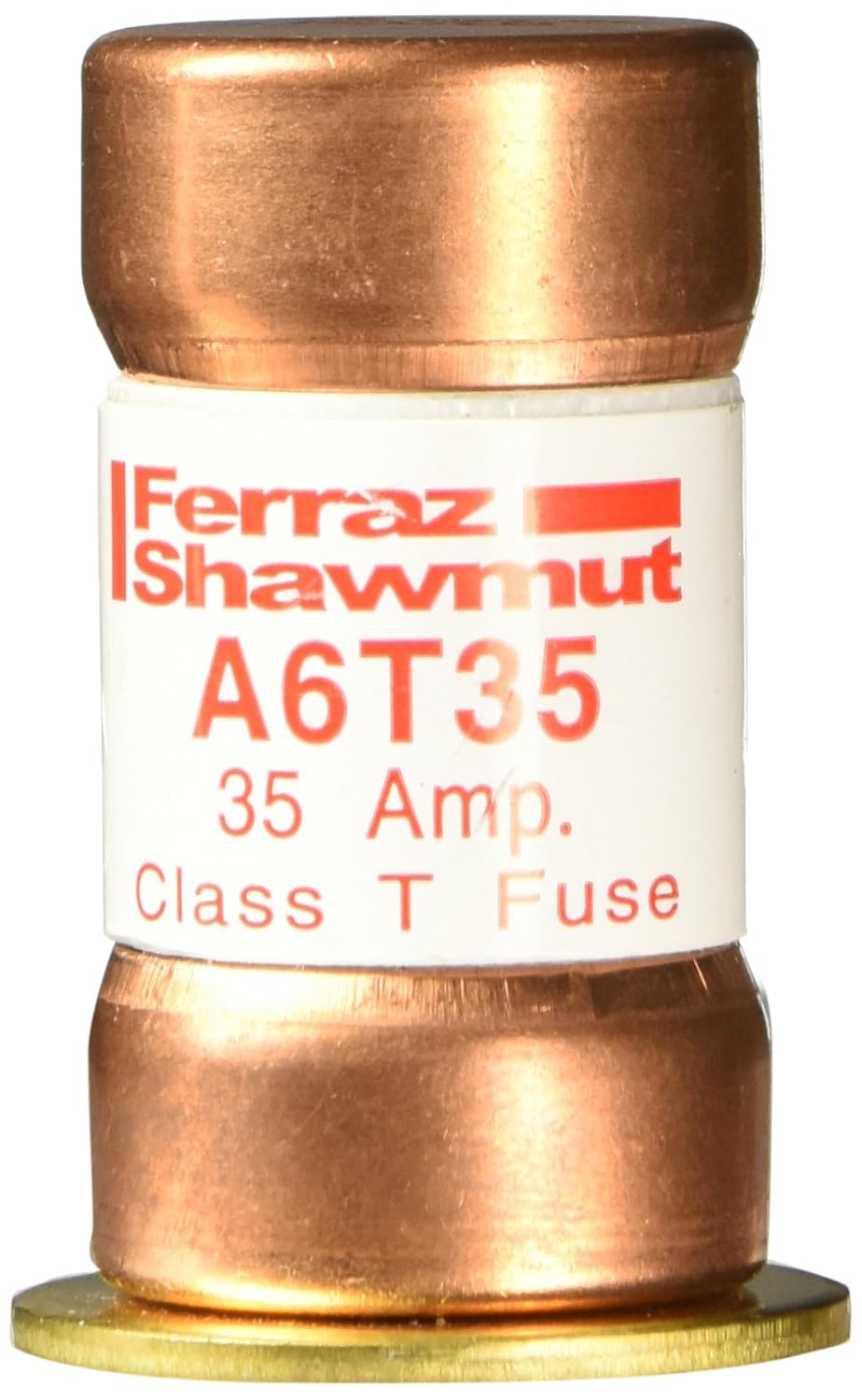

Mersen A6T Fast Acting/Class T Fuse, 600VAC/300VDC, 200kA AC/100kA DC, 100 Ampere, 11/16" Diameter x 2-61/64" Length
Product details
| Management number | 221627424 | Release Date | 2026/05/03 | List Price | US$8.92 | Model Number | 221627424 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Mersen fast acting/class T fuse. These small dimension fuses are the right fit for a tight fit fast-acting A6T class T fuses combine two highly desirable features - high current limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification. Application: loadcenters, panelboards, switchboards, circuit breakers, metering centers. Approvals: UL listed to standard 248-15 file E2137, CSA certified to standard C22.2 no. 248.15, DC listed to UL standard 248.
- Fast acting/class T fuse
- Extremely current-limiting for low peak let-thru current
- Unique dimensions prevent replacement by other fuse classes
- Blade-stamped catalog numbers for permanent identification
- Small physical size for greater design flexibility
| UPC | 782001891435 |
|---|---|
| Color | Multicolor |
| Model | A6T100 |
| Voltage | 600 Volts |
| Brand Name | Mersen |
| Unit Count | 1.0 Count |
| Part Number | A6T100 |
| Manufacturer | Mersen |
| Material Type | Glass, Melamine |
| Mounting Type | Surface Mount |
| Item Dimensions | 3.1 x 1 x 4.3 inches |
| Maximum Current | 100 Amps |
| Specification Met | CSA |
| Included Components | Light |
| Warranty Description | No Warranty |
| Global Trade Identification Number | 00782001891435 |
